Understanding States in ComposeFlow

In ComposeFlow, state is a fundamental concept that drives the dynamic behavior of your application. Managing state effectively allows your UI to react to data changes seamlessly, providing a responsive and interactive user experience. This document will help you understand the basics of state in ComposeFlow and how to work with state hierarchies.

State Basics

What is State?

  • State refers to any value in your app that can change over time.
  • It represents the current data or conditions that determine how your app behaves and what it displays.

How State Works in ComposeFlow

  • Declarative UI: ComposeFlow generates apps using Compose Multiplatform, following the same principles as Jetpack Compose, which is built on a declarative UI approach. This means the UI is a reflection of the current state.
  • Automatic Updates: When the state changes, the UI automatically updates to reflect those changes.

Assigning State to Values

  • Binding State to UI Elements: You can assign a state to a property of a composable. For example, the value of a TextField composable can be bound to a state variable.
  • Reactive Updates: Once a state is assigned, any change in the state will be immediately reflected in all bound UI elements due to the declarative nature of ComposeFlow.

Example: TextField and Text Binding

  • User Input Handling: When you have a TextField composable where users can input text, you can bind its state to display the input elsewhere in your app.
  • Real-Time Reflection: As the user types in the TextField, any Text composable bound to the same state will update in real-time to display the current input.

States Hierarchy

State management in ComposeFlow is organized hierarchically to provide scope and control over where and how states are used.

Types of States

  1. App States:

    • Global Scope: Visible and accessible throughout the entire application.
    • Use Cases: Ideal for data that needs to be shared across multiple screens or components, such as user authentication status or global settings. See App state for how to define app states

  2. Local States:

    • Scoped Visibility: Visible only within the screen or component where they are defined.
    • Use Cases: Suitable for data that is relevant only to a specific part of the UI, like form inputs or toggle states.

State Hierarchy Structure

  • In ComposeFlow, components do not belong to any specific screen, and both screens and components can have their own local states.
  • The state hierarchy is essentially two levels:
    • App State: Global level.
    • Local State: Includes both screen states and component states at the same level.

Automatic Creation of Local States

  • Implicit State Creation:
    • ComposeFlow simplifies state management by automatically creating local states when certain composables are added to the canvas.

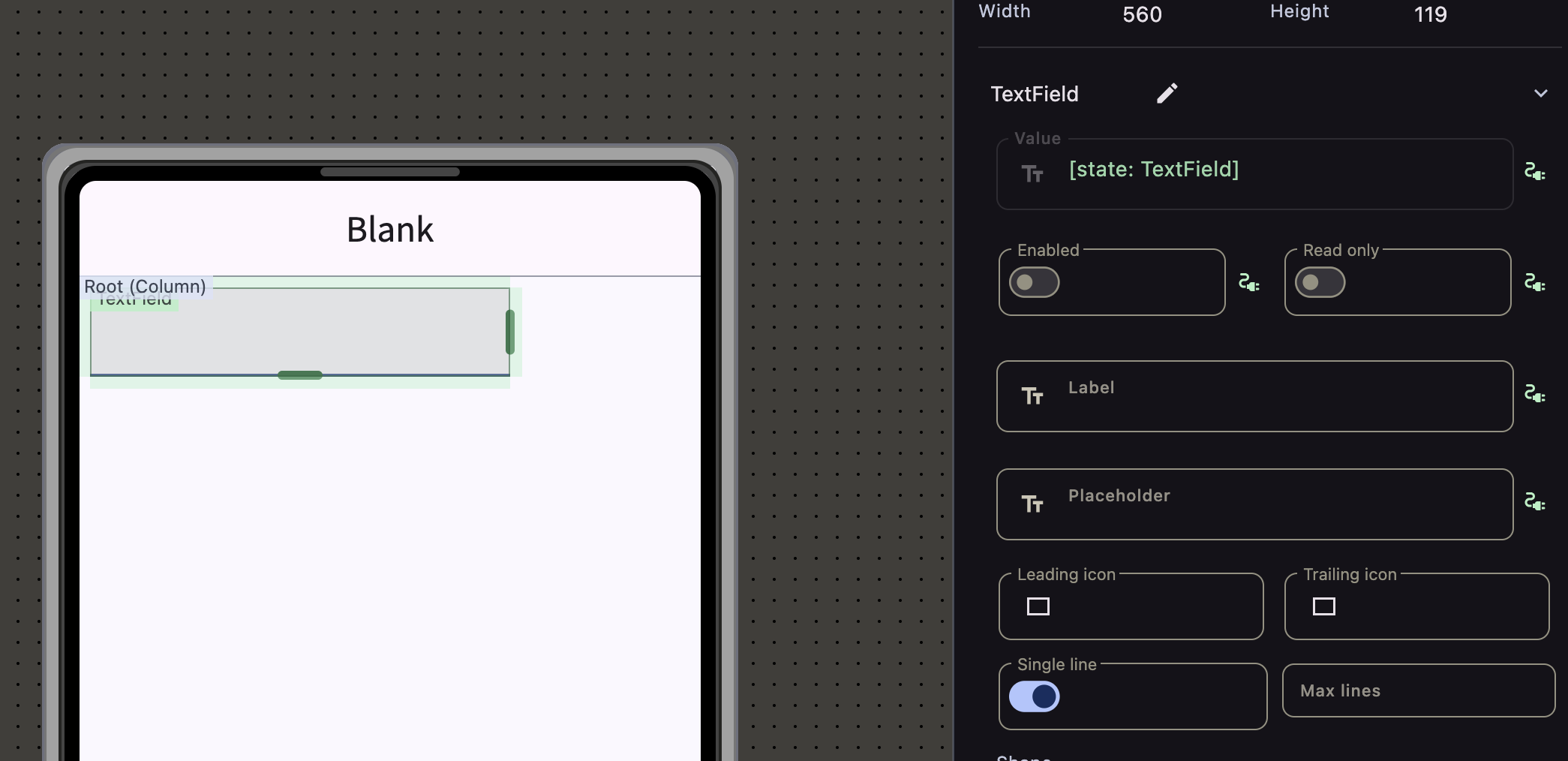

  • Example: TextField Composable
    • When you drag a TextField onto the canvas, ComposeFlow automatically creates a local state variable to hold the input text.
  • Benefits:
    • Ease of Use: Reduces the need for manual state setup.
    • Encapsulation: Keeps the state localized to the composable, promoting cleaner state management.

Practical Examples

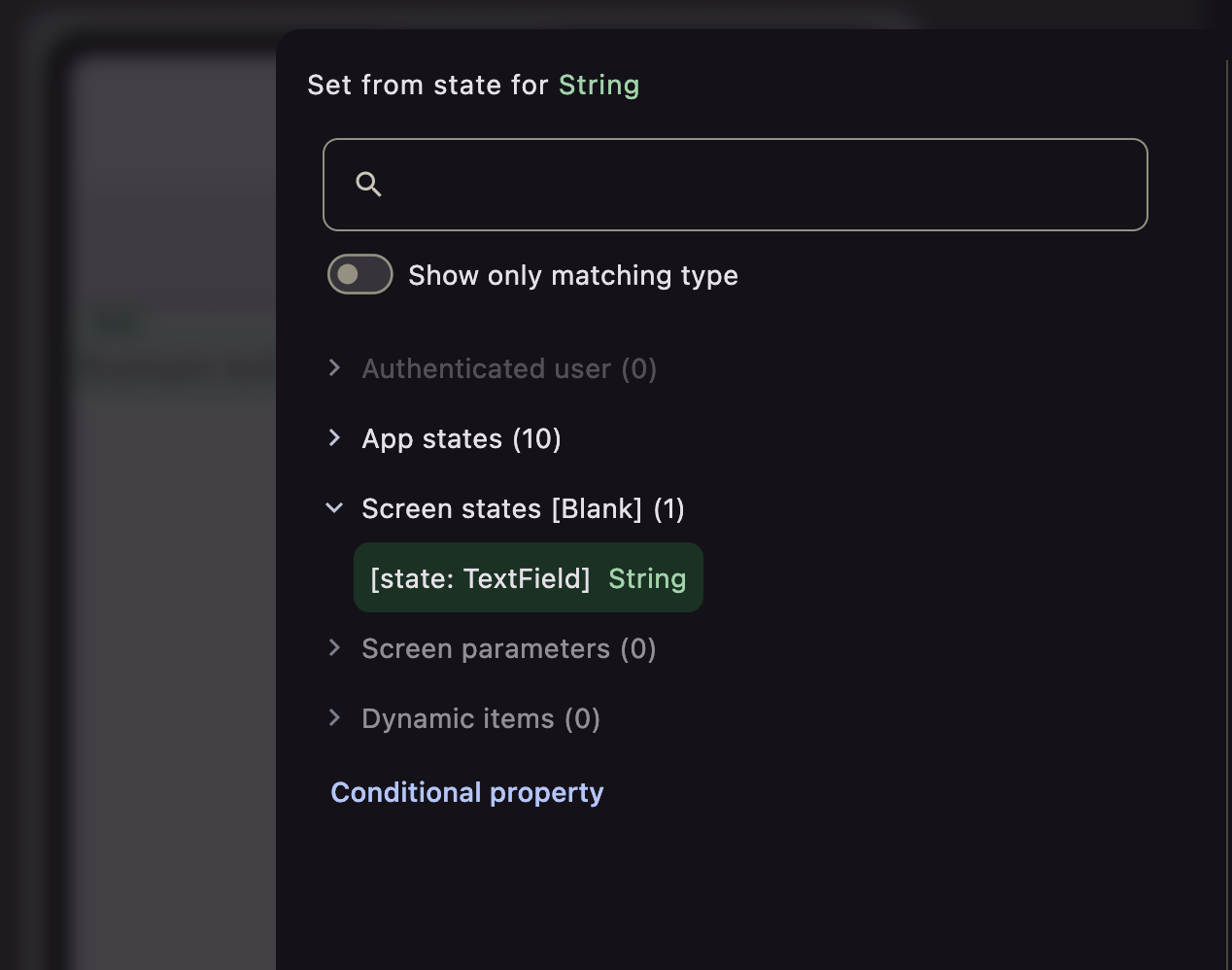

Example 1: Binding a TextField to a Text Composable

  • Scenario: You want to display user input from a TextField elsewhere on the screen.
  • Implementation:
    • The TextField has an automatically created local state representing its input value.
    • You can bind a Text composable to the same state to display the input in real-time.

Example 2: Managing Toggle States in a composable

  • Scenario: You have a custom toggle switch composable that changes appearance of another composable when toggled.
  • Implementation:
    • The Switch composable creates a local boolean state to track whether it’s on or off.
    • Drop a Card composable into the canvas area
    • Bind the Switch’s state to the Visibility property of the Card
    • The state change affects the visibility of the Card, without impacting other parts of the app.

Example 3: Sharing Data Across Components with App State

  • Scenario: Multiple components need to display the user’s current score in a game.
  • Implementation:
    • An app state variable holds the user’s score.
    • All relevant components and screens bind to this app state to display the updated score consistently.

Key Takeaways

  • State Drives UI: In ComposeFlow, the UI is a direct reflection of the current state. Changes in state automatically trigger UI updates.
  • Two-Level Hierarchy: States are organized into app states (global) and local states (specific to screens or components).
  • Automatic State Management: ComposeFlow simplifies state handling by automatically creating local states for certain composables.
